Improve the Wireless of Large Form Factor devices

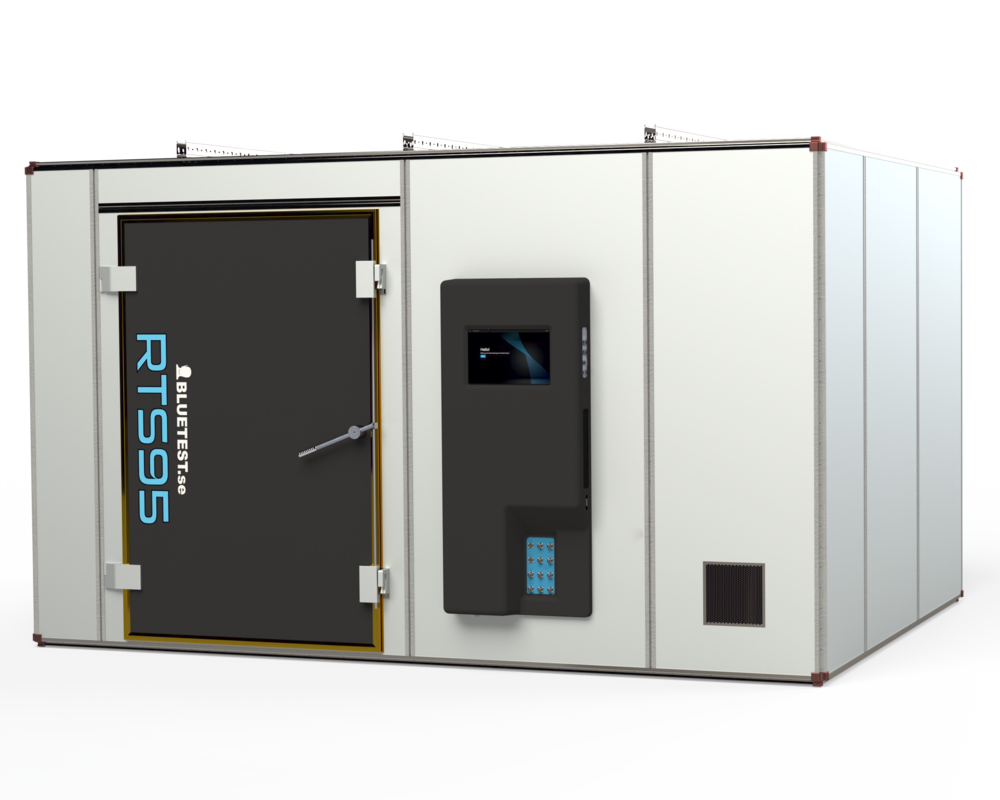

The spacious RTS95B lets you measure larger form factor test objects such as television screens, smart home appliances, large M2M devices, small base stations, or automotive subsystems. The optional 1.2 m or 1.5 m heavy duty turntable can handle devices with a weight up to 150 kg which widens the range of devices that can be tested.
The reverberation chamber is CTIA approved for large form factor devices
The reverberation chamber is included as the only measurement methodology for wireless large form factor devices in CTIA’s test plan for over-the-air (OTA) performance testing. All devices larger than notebook-size (one dimension larger than 42 cm) are defined as a large form factor device. This means that the RTS95B is the suitable reverberation chamber to fulfill CTIA test plan requirements.
Customer applications
We have several customers that are users of our large chambers. They find the measurement space available is incredibly useful for measurements of washing machines and large smart TVs. The fact that DUT positioning is not important gives our customers the flexibility to make measurements with a live person walking around inside the chamber either with a handheld device or with body worn antennas.
What Customers Say
Bluetest's solution is unique in the market place as they are the only vendor providing testing solution for such big form factor devices, especially they are pioneer in WiFi IoT testing.
Wang Y.J.CEO, RFsister
Test your Wearables - Mounted on a Live Person
The measurement space in the RTS95 is 2 m x 2 m x 2 m which is perfect for measurements of wearable devices and antennas mounted on a live person or person dummy. It is very suitable for development and testing of body worn antennas so the engineer can see the impact of how different people handles the wireless device, how different bodies, and how the antenna is mounted on the body has an impact on the RF performance.
Lower Frequencies - testing down to 400 MHz
Thanks to its physical dimensions, RTS95 allows for accurate measurements on frequencies down to 400 MHz. Antenna applications like terrestrial TV, for military/security/emergency communication, or 450 MHz cellular systems are excellent to measure in the RTS95.
